Divine Bow No. 3 Uav Defense System V1.0
PRODUCT INTRODUCTION

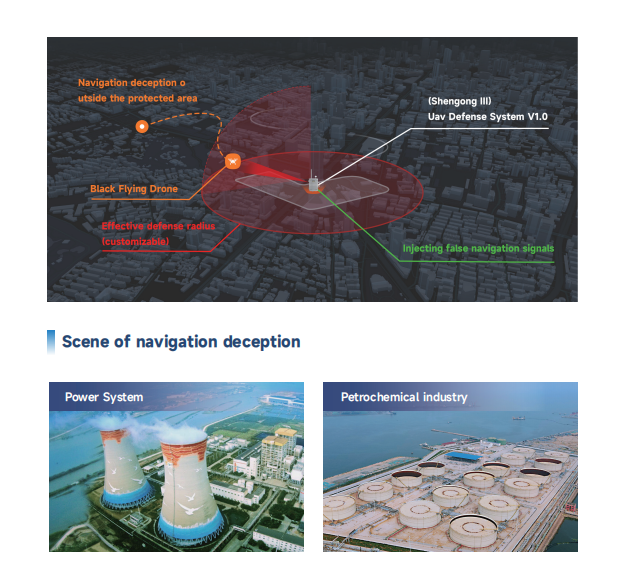

The Uav Defense System V1.0 (Shengong III) is an advanced anti-UAV system. It simulates legitimate navigation signals to interfere with and spoof illegal "black flying" UAVs, forcing them to receive incorrect positioning data and lose flight control, thereby maintaining low-altitude flight safety and enhancing airspace protection.
| EIRP | ≤10mW |
|---|---|
| FREQUENCY RANGE | GPS: 1575.42 ± 1.023MHz, GLONASS: 1602.0MHz+NX562.5kHz ± 511kHz (N takes -7~6) |
| DEFENSE RADIUS DISTANCE | ≥ 500-1000m, and adjustable within 500m |
| FREQUENCY TOLERANCE | ±2×10¯6 |
| OCCUPYING BANDWIDTH | Not exceeding the frequency range |
| SCATTERED EMISSION | 30MHz-1GHz（RBW 100kHz) ≤-36dBm； 1GHz-18GHz (RBW 1MHz) ≤-30dBm |
| EFFECTIVE TIME | <10s |
Multi system compatibility induction
It generates GPS-L1 and GLONASS-L1 signals in real time, can generate GALILEO-E1 signals, and ensures accuracy within 1 microsecond.
Customizable transmission power mW
The standard equipment transmission power is ≤ 10mW, and high-power versions can be customized as needed.
UAV All-round defense
Using a 360-degree omnidirectional antenna to ensure full coverage, the defense distance can be customized and power adjusted as needed.
Multiple protection authentication
The equipment is tested for explosion prevention, lightning protection, and salt spray resistance, and is suitable for harsh environments.
Unmanned intelligence
Equipped with intelligent defense solutions, it can operate 24/7 unmanned, ensuring area safety.
Flexible expansion and collaborative work
It can operate independently or integrate with radio detection modules for single or networked operations.
